HIGH TEMPERATURE VACUUM & CONTROLLED ATMOSPHERE HORIZONTAL/VERTICAL LABORATORY FURNACE

Applications

  • ANNEALING
  • BRAZING
  • CERAMIC FIRING
  • DEGASSING
  • GRAPHITIZING
  • HEAT TREATING
  • MELTING
  • SINTERING

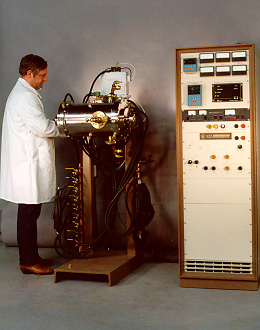

The MRF tube furnace is operational in the horizontal or vertical position.

Can be easily rotated in 30 degree increments. Graphite hot zones from 3.0" dia to over 14.0" long.

Optional muffle tubes are available for oxidizing atmospheres to 1750 deg. C.


TERMPERATURES UP TO 3000 DEGREES C
OPERATING PRESSURES FROM 2 PSIG TO 10-6 TORR


MRF 1200 Degree C Oxidation Furnace

"Special in-air application"
MRF one meter long 2500 Degree C tube furnace special unit sharing controls with the MRF front opening 2500 Degree C hot press.

The standard MRF graphite tube furnace has no internal water cooling. Designed for use with 3 phase power. All 304L stainless steel construction. 4" ANSI pumping system. 30 KVA 3 phase power supply.


The power supply is designed to accommodate a ramp rate of 100 Degrees C/min., up to operating temperature. Three phase SCR control provides an economical and efficient means of modulating power to the heating element in a reliable and accurate fashion. Water cooled power cables supply the power to the heating element from the main step down transformer. Volt and amp meters are supplied to visually monitor the power the furnace is using.

For truly extraordinary applications, MRF specialists can design and build one-of-a-kind furnaces that meet unique and demanding needs of the R&D industry. You'll appreciate the "can do" attitude at MRF.

The MRF Commitment

Personal ServiceAccurate QuotesIntelligent Designs


Innovative EngineeringQuality Workmanship


On-Time DeliveryDependable Performance


Technical SupportField Service
